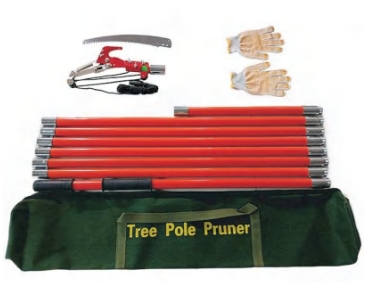

Insulated Tree Pruner - Photo ID 84942

Product Features:
Insulated Tree Pruner are suitable
for prune tree branches and trunks
under distribution power lines.
Insulated tree pruner adopt the
principle of mechanical levers and
pulley blocks. They are composed of
shears, saws and insulating poles.
The insulating poles are made of
high-strength insulating tubes. The
insulating poles can be customized
according to user requirements. With
sectional or telescopic connections.
The maximum working range of the
insulated tree pruner is 6m, the
maximum effective opening of the
scissors is 38mm, and the operating
line voltage is not higher than 35kv. It is an ideal tool for the power and railway utility to
prune trees along the power line.
Product Character �
1. The Pole is made of high strength insulating tubes, which passed 100kV/300mm test .
2. Max Length: 8 M;
3. Pulley lever transfer force;
4. Spring rebound design, quick rebound of the knife head, automatic reset
5. Steel cutter head, rust-proof and wear-resistant, sharp and strong, easy to break
branches
6. The saw blade grinds teeth on three sides and does not jam the saw;
7. The maximum effective opening of the scissors is 38mm and 50mm two type;
