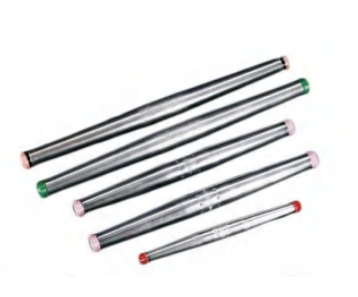

Overhead Line Automatic Splices - Photo ID 84933

Main Character�
1.No special tools required for installation, no need crimping operation.
2.Automatic Splice is tension-dependent device
that the line must have at least 10% of the rated breaking strength during installation to ensure reliable electrical connection.
3.The current passes through the wire to the metal crucible, flows through the metal crucible to pass the current to the outer casing, and the outer casing transmits the current to the metal
crucible, which is transmitted from the metal crucible to the conductor.
4.The loop resistance of the Automatic Splice is not more than 1.1 times the loop resistance of the isometric conductor. The metal crucible can penetrate the residual oxide layer on the surface of the conductor , so that electrical conductivity is Reliable.
