TBP-06 Insulated Cable stripper - Photo ID 84944

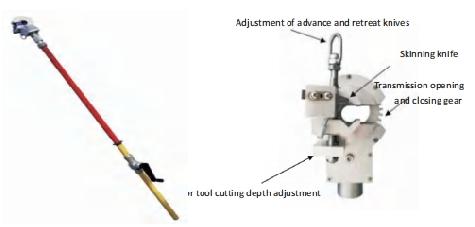

This product is a specialized stripping device developed for various wire diameters of insulated wires currently in use in China. The product has a simple structure, modular design, and can be operated by a single person. By changing the direction of the handle, functions such as embedding wires, peeling, and exiting peeling can be achieved. By replacing the operating lever, it can be applied to both power-off and live working operations.
2. Technical Data
Applicable cable: Cross linked polyethylene insulated wire, cross-section 50mm2-
240mm2 (special cable types can be customized)
Peeling operation: single person operation;
character of operation: Live working of bucket arm truck: TBP-15 type operating rod can be used for stripping operation on power outage lines;
Ground potential live operation: TBP-25 type operating rod can be used for live
stripping operation on the operating line.
Working voltage: 10kV in non rainy and snowy environments
3.Ordering instructions: When selecting the product, please specify the nature of the operation (power-off operation/live operation) and provide the specific model of the insulated wire (with different thicknesses of the insulated wire skin), in order to select the appropriate tool holder. After the tool wears out slowly, you can grind it yourself or order a new tool.
